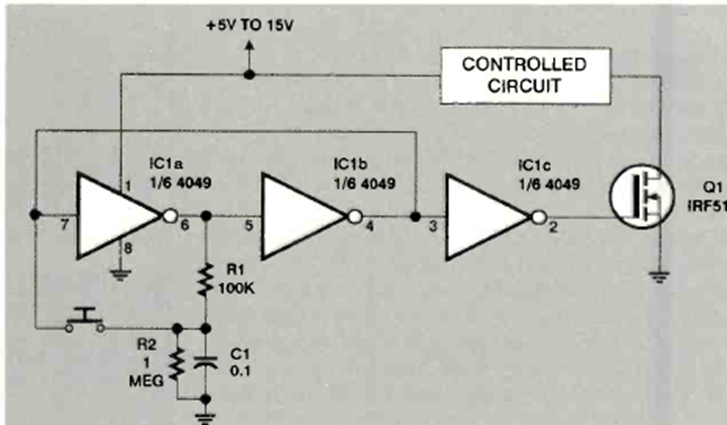

CMOS Timer (CB26084E)

Details
Written by: Newton C. Braga



This circuit was found in the January 1999 issue of Electronics Now magazine. The turn-on time is given by the capacitor and MOSFET and must be in accordance with the controlled load.
