Field Strength Meter (CB26198E)

Details
Written by: Newton C. Braga

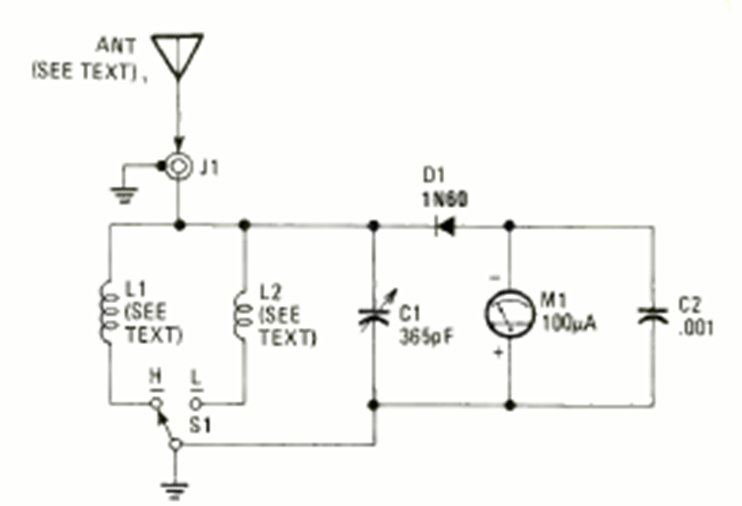

This simple circuit for the 3 to 30 MHz range was found in the Electronics Experimenter Handbook Special Projects of 1983. The coils consist of 10 and 50 turns of 32 wire on a 1 M x ½ W resistor.
