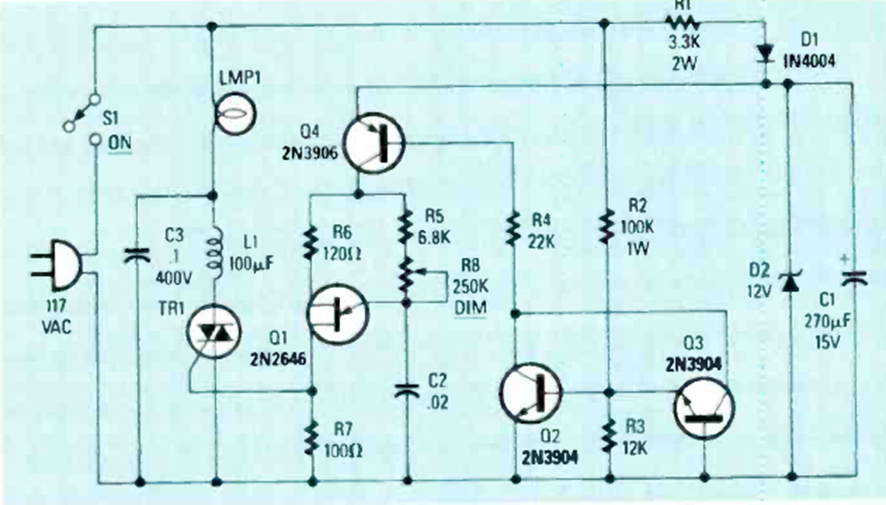

Dimmer with UJT and Traic (CB25086E)

Details
Written by: Newton C. Braga



The circuit is from a Radio Electronics magazine from October 1987. The Triac must be equipped with a heatsink and the transistors are general purpose.
