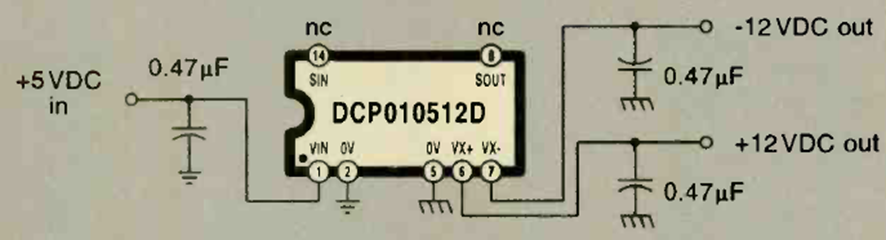

We found this symmetrical power supply circuit in an Electronics Now magazine from August 1998. The circuit has a 5 V input and uses an integrated circuit that is not very common today.
| Clique na imagem para ampliar |
Symmetrical 12 V x 50 mA Regulator (CB26059E)
- Details
- Written by: Newton C. Braga
