Power Amplifier Stage (CB3833E)

Details
Written by: Newton C. Braga

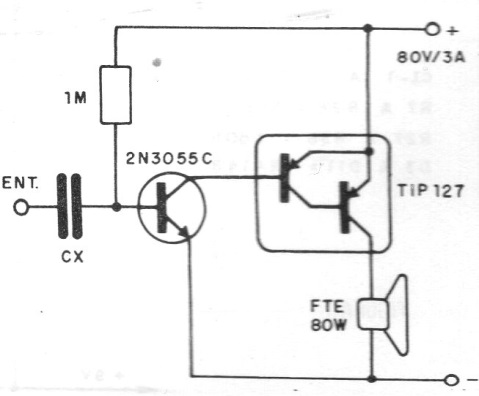

     This audio stage can be used in siren circuits, sound effects and others to excite a few watts speaker. The circuit can be powered by high voltages up to the indicated value, but the transistors must be equipped with excellent heat sinks.
