AGC Manual Control for SSB (CB4158E)

Details
Written by: Newton C. Braga

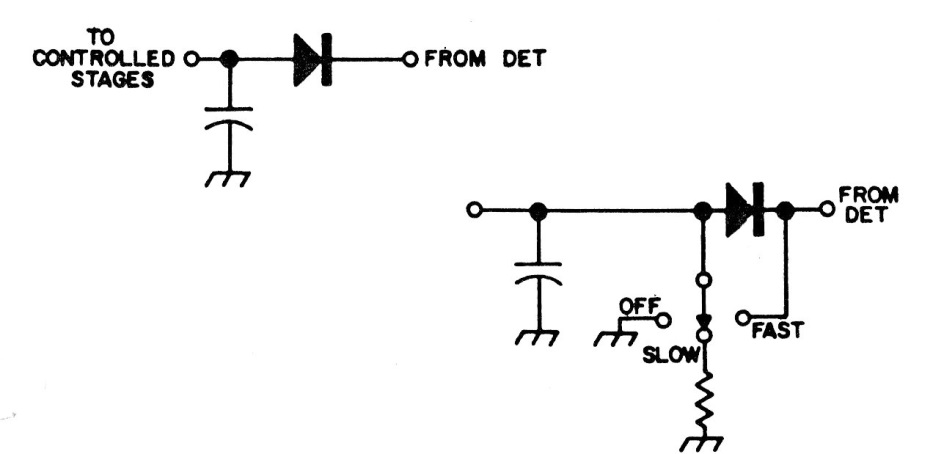

   The two circuits shown show how to obtain an SSB / CW control for receiving this signal top at a common receiver. The circuits were found in an old American manual from the 80's.
