10.7 MHz Amplifier (CB4290E)

Details
Written by: Newton C. Braga

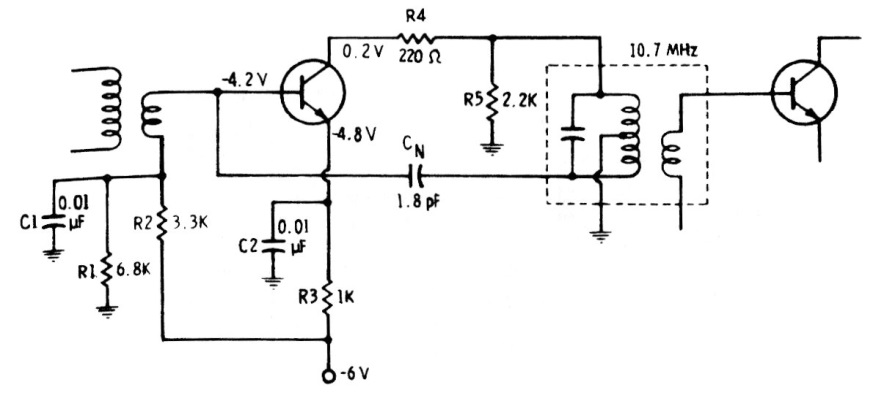

     This is a classic FM amplifier IF amplification stage configuration. The circuit is from a 1980s documentation. CN is the neutralizing capacitor.




| Clique na imagem para ampliar |
