Distortion circuit 3 (CB4873E)

Details
Written by: Newton C. Braga

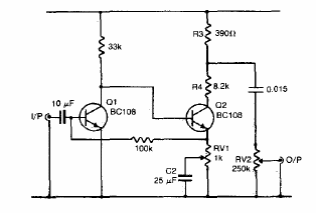

    One more distorting circuit or guitar fuzz. This was found in an American 1980s documentation. The transistors can be the modern BC549 equivalents and 9V battery powered.
