Low Voltage Monitor (CB4987E)

Details
Written by: Newton C. Braga

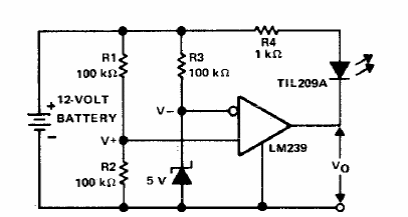

    The circuit shown was taken from an American 80s schematic. The circuit indicates when the battery voltage drops below 10 V by turning on an LED. The integrated power supply need not be symmetrical. Refer to the component manual for power supply.
