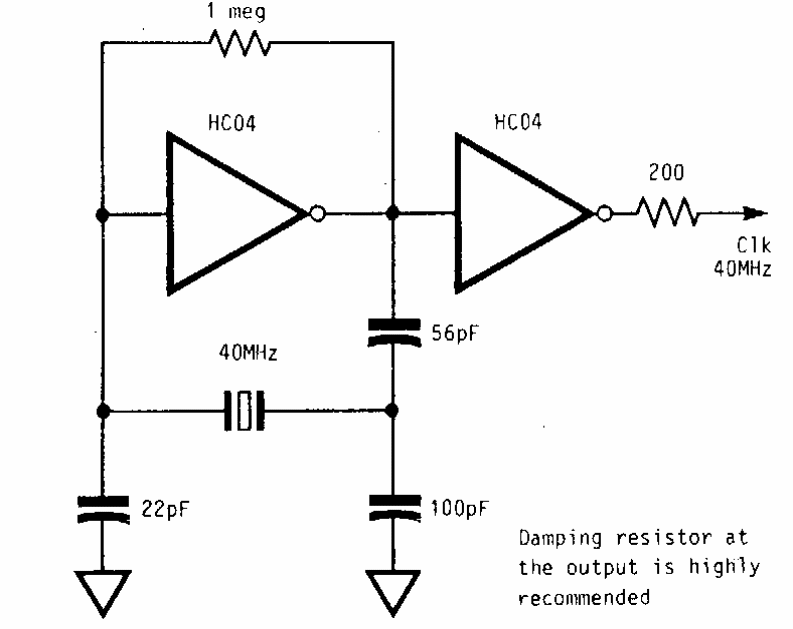

Found in an ancient American documentation, this circuit can generate signals up to 40 MHz for a Z80, microcontroller widely used at the time. The circuit must be powered with 5 V and also serves as a shield.
| Clique na imagem para ampliar |
Z80 Clock (CB6094E)
- Details
- Written by: Newton C. Braga
