Continuity Test (CB5935E)

Details
Written by: Newton C. Braga

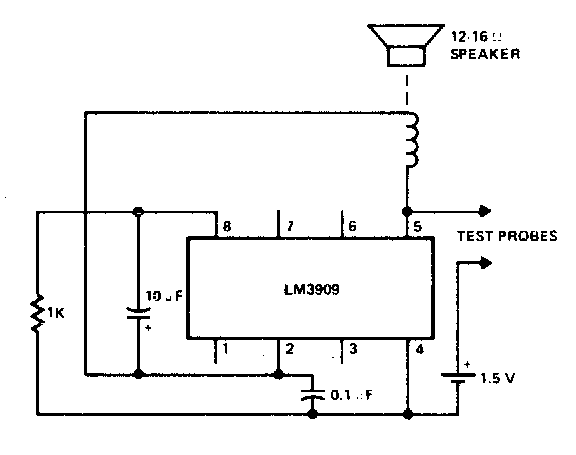

     This circuit appears elsewhere on this site, but from different sources. Using the LM3900, we find this sound tester in an old American documentation.
