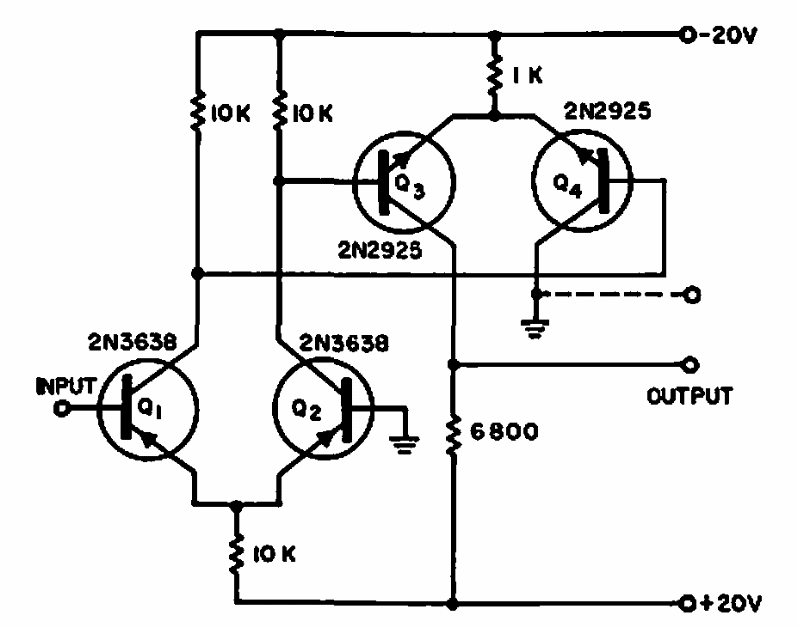

Differential Output Amplifier (CB6135E)

This circuit of old American documentation (1965) can be applied to any transistor.
