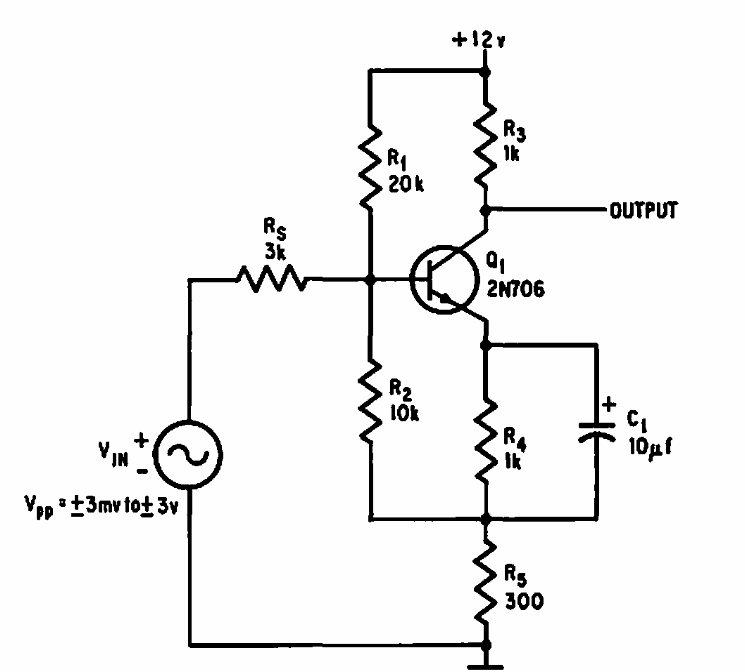

Amplifying Stage (CB6127E)

This circuit is from a 1967 publication. The configuration holds true for modern transistors having a feedback across R2.

| Clique na imagem para ampliar |
