This circuit was found in an American 1980s documentation. PUTs are rare today. Capacitors C1 and C2 are delayed and should be low leakage current types.

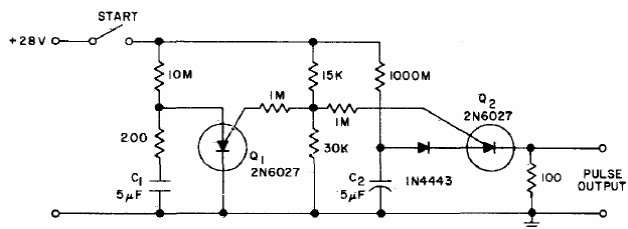

Long delay using PUT (CB5151E)
- Details
- Written by: Newton C. Braga
This circuit was found in an American 1980s documentation. PUTs are rare today. Capacitors C1 and C2 are delayed and should be low leakage current types.
