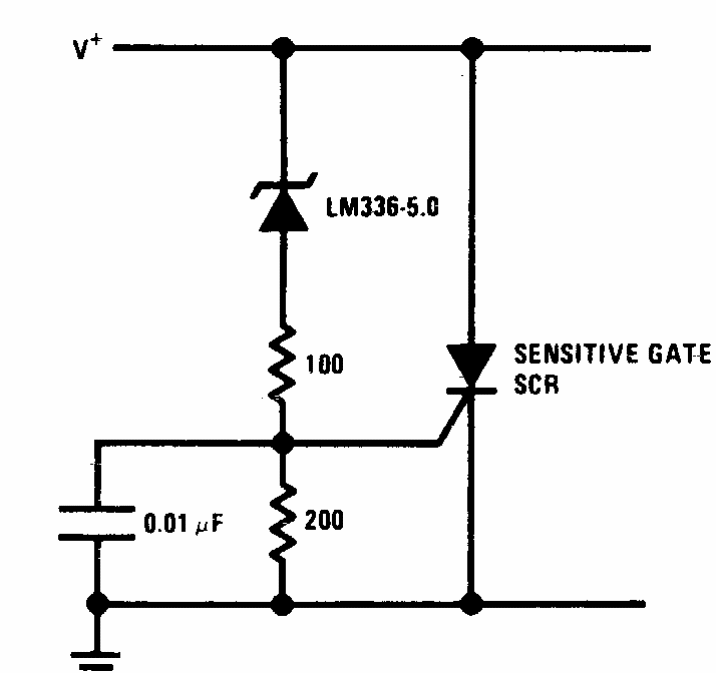

Sensitive Crowbar (CB5887E)

This circuit is from an 80's documentation, firing when the input voltage exceeds 5 V. The SCR can be the TIC106 need not have a heatsink.
