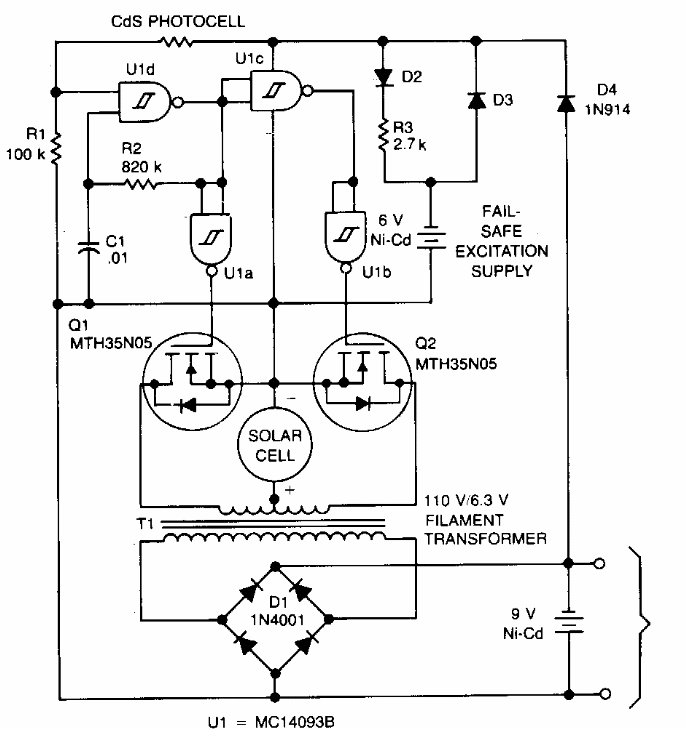

Motorola suggests this circuit in an 80's documentation. The circuit uses an inverter to produce a higher voltage for 9 V battery charge from a single cell.
| Clique na imagem para ampliar |
Solar Charger (CB6057E)
- Details
- Written by: Newton C. Braga
