5 W Amplifier (CB6167E)

Details
Written by: Newton C. Braga

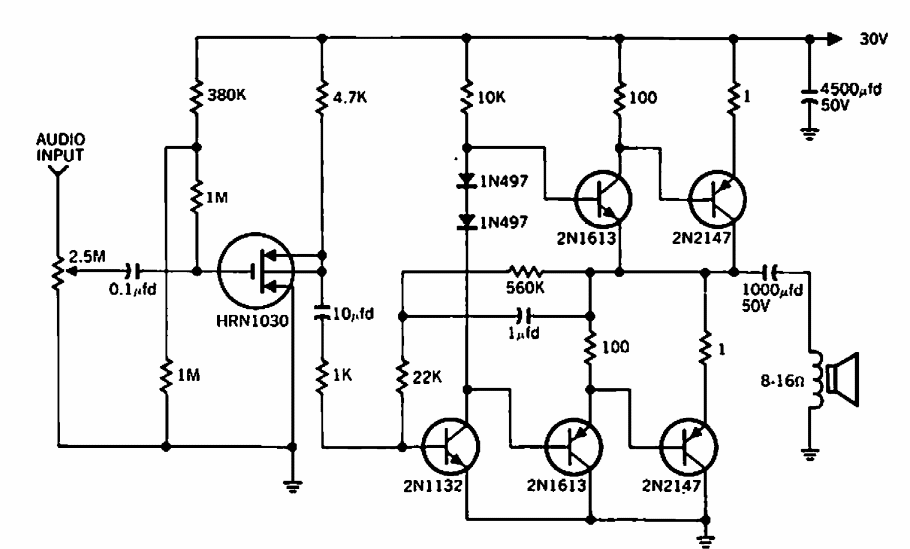

     Hughes suggests this circuit in a 1968 documentation. The circuit uses old transistors that can be replaced with equivalents. MOSFET is the critical component of the circuit.
