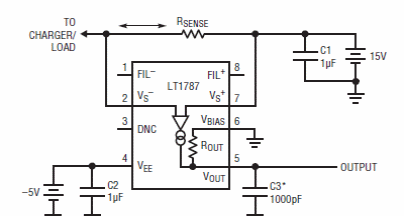

We found this circuit in 2005 Linear Technology documentation. The integrated circuit is LT1787 and the application is for 15V batteries. The circuit monitors the battery charge and discharge.
Bidirectional Current Monitor (CB5226E)
- Details
- Written by: Newton C. Braga
