Wind charger (CB6056E)

Details
Written by: Newton C. Braga

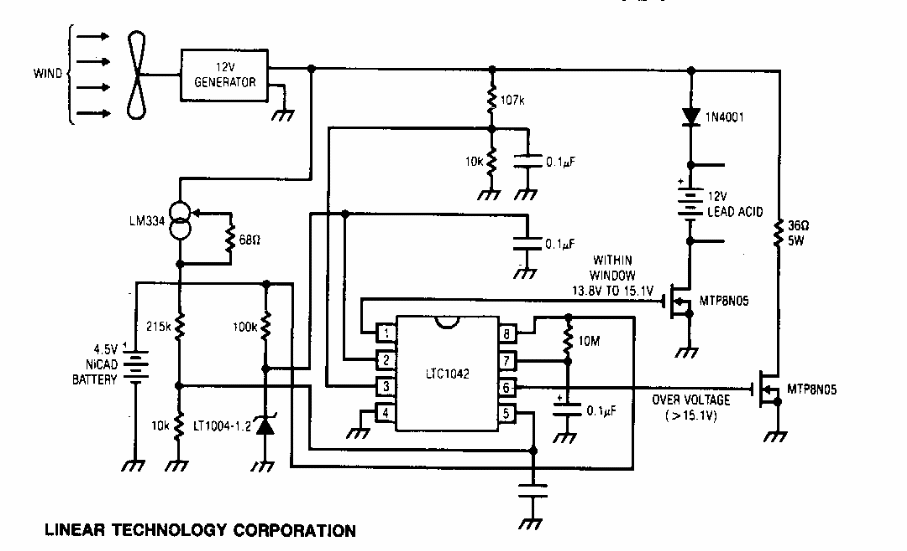

     This Linear Technology circuit charges a battery from the energy produced by a wind generator that can be a 12 V dynamo driven by a propeller. FET admits equivalent.




| Clique na imagem para ampliar |
