Half Wave Fast Rectifier (CB5160E)

Details
Written by: Newton C. Braga

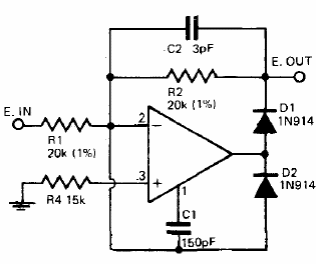

     This 80's circuit can be made with current comparators. Rectification accuracy is 1% DC up to 100 kHz.
