Ramp Generator (CB5928E)

Details
Written by: Newton C. Braga

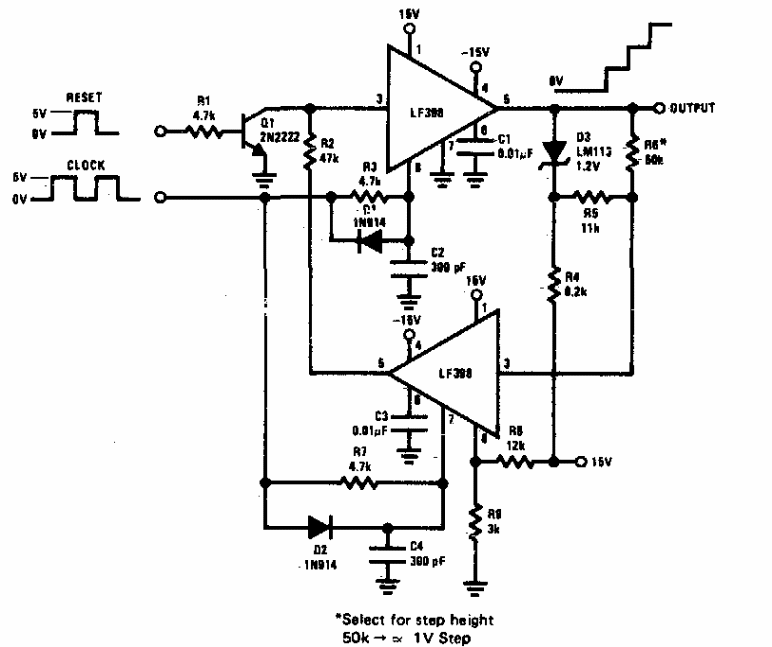

     We found this circuit in an 80's manual. The same configuration can be adapted to make use of modern operational amplifiers. The power supply is symmetrical.




| Clique na imagem para ampliar |
