Electronic Roulette (CB7002E)

Details
Written by: Newton C. Braga

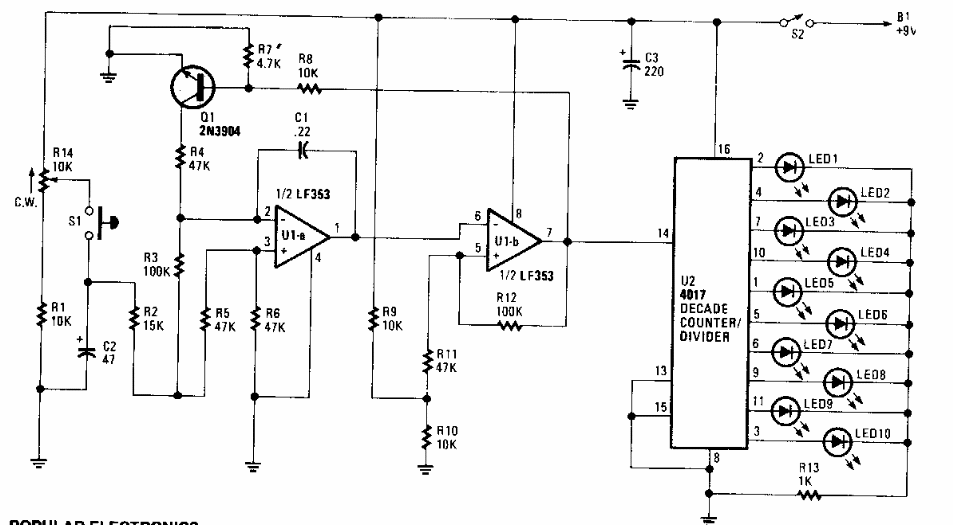

     Found in a Popular Electronics from the 90s, this game can be seen in other configurations on this site. The circuit uses components that are still common today.




| Clique na imagem para ampliar |
