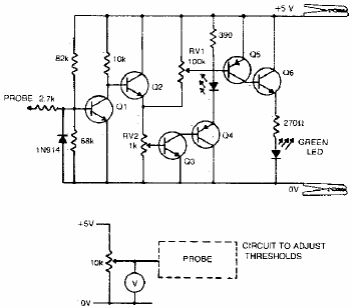

The transistors of this circuit may be general purpose and the power supply comes from the TTL circuit under test itself. The circuit is from an 80's documentation.
Logical Probe (CB5908E)
- Details
- Written by: Newton C. Braga
The transistors of this circuit may be general purpose and the power supply comes from the TTL circuit under test itself. The circuit is from an 80's documentation.
