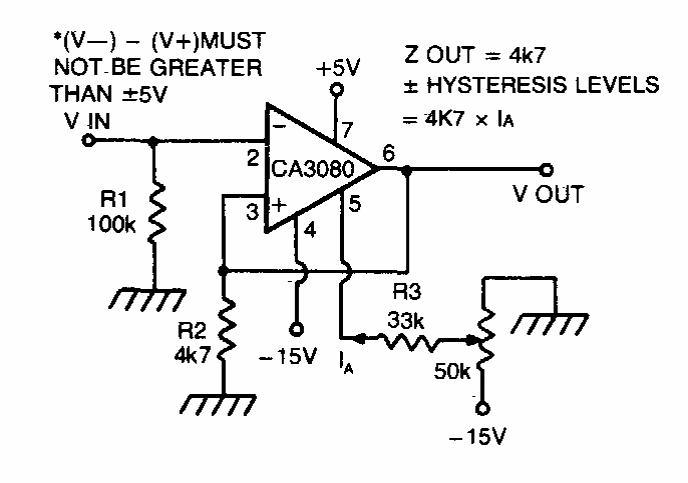

This circuit uses an 80's operational amplifier. The circuit is from an old RCA manual and can be implemented with modern components. Observe the symmetrical power supply.
| Clique na imagem para ampliar |
Schmitt Trigger with Programmable Hysteresis (CB5964E)
- Details
- Written by: Newton C. Braga
