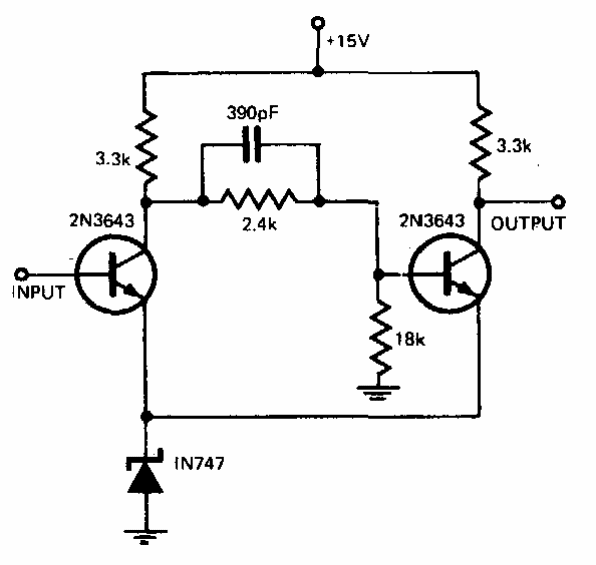

This circuit is from an old documentation. However, it can be designed based on modern transistors such as 2N2222 and changing the zener as desired power and characteristics.
Hysteresis-free Schmitt Trigger (CB5963E)
- Details
- Written by: Newton C. Braga
