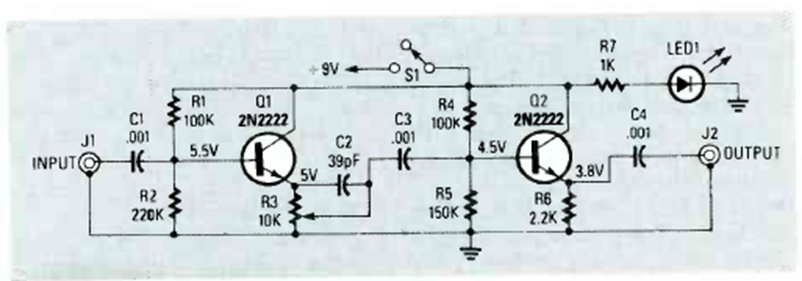

This circuit for VCR recording heads was found in the February 1990 issue of Radio Electronics magazine. The circuit is use do observe signal in an oscilloscope.
| Clique na imagem para ampliar |
VCR Amplifier (CB25269E)
