Proximity Relay (CB25343E)

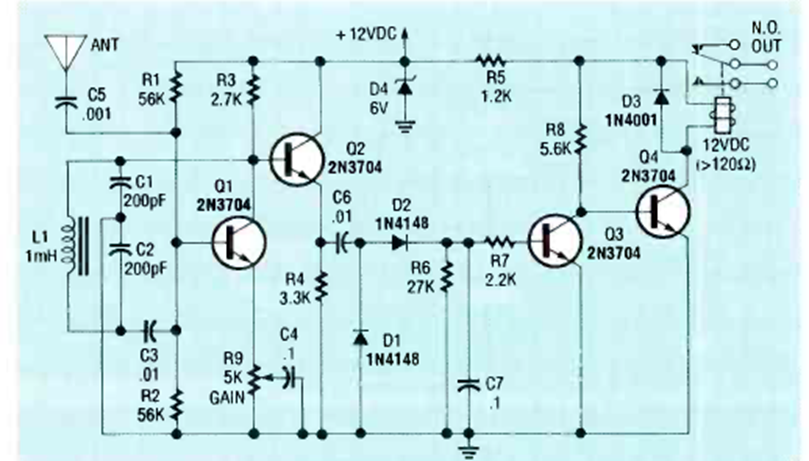

This proximity relay circuit was found in the July 1990 Radio Electronics magazine. The supply voltage should be according to the relay used.

| Clique na imagem para ampliar |

Active Low Pass Filter (CB19802E)
This second-order filter was found in a documentation from the 90's. It can be implemented with...
Memory or Bistable Using Relay (CB19777E)
To implement this function, we need a relay with double contacts, as shown in the figure. With a...
Light Relay (CB473)
In this circuit the relay triggers on when light falls onto the sensor, a common LDR. Power supply...
