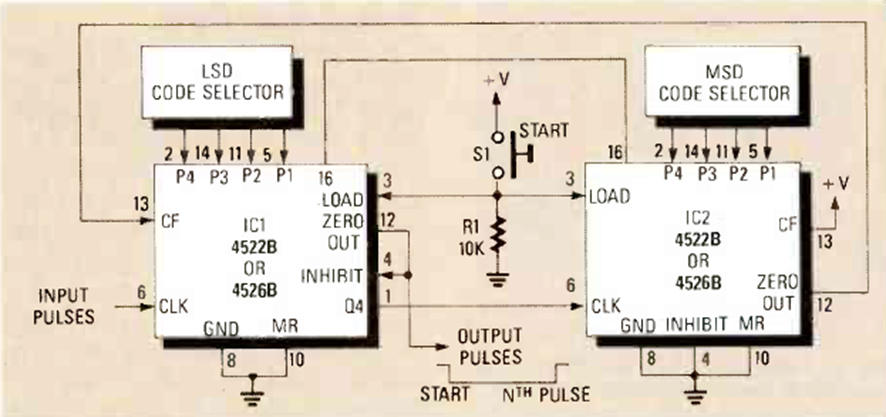

Programmable Countdown Timer (CB25198E)

We found this circuit in the February 1989 issue of Radio Electronics magazine. The selectors are BCD programming switches. The circuit is CMOS.

| Clique na imagem para ampliar |

Varicap Variable Frequency Oscillator (CB4587E)
The great advantage of the circuit shown in the figure is that its frequency is controlled by a...
TTL to MOS Converter (CB5106E)
This circuit can be used as a shield for microcontrollers. The circuit is from American...
Transistorized Oscilloscope (CB11568E)
Mounting an oscilloscope is the dream of many of our Internet users, although it comes up against...
