Improved Red Alert (CB25341E)

Details
Written by: Newton C. Braga

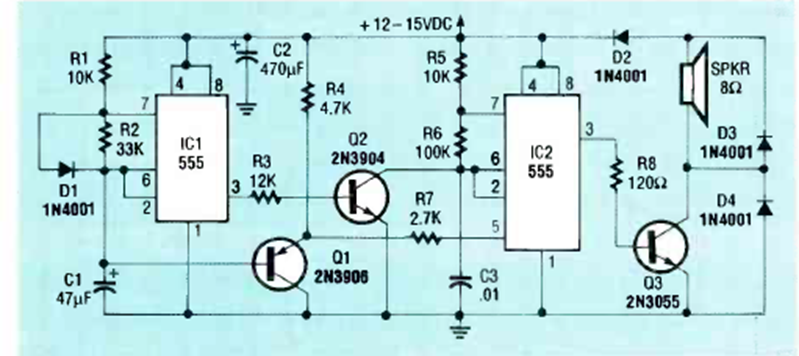

This Star Trek red alert circuit was found in the July 1990 issue of Radio Electronics magazine. The power transistor must be equipped with a heat sink.
