4001 Touch Bistable (CB25740E)

Details
Written by: Newton C. Braga

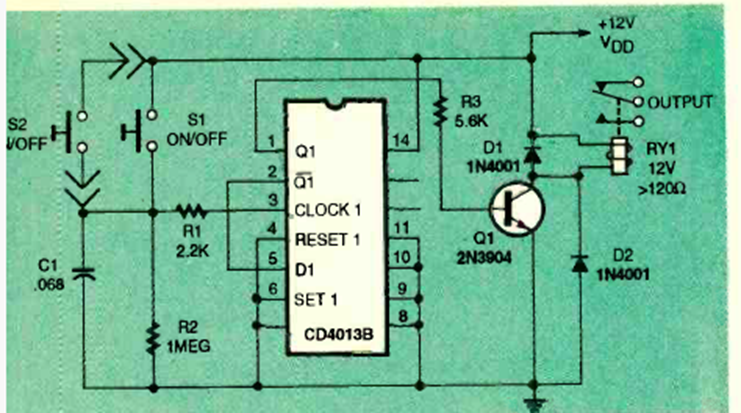

Found in the July 1994 Electronics Now magazine, this circuit drives a relay up to 12 V depending on the power supply. The transistor can be general purpose.
