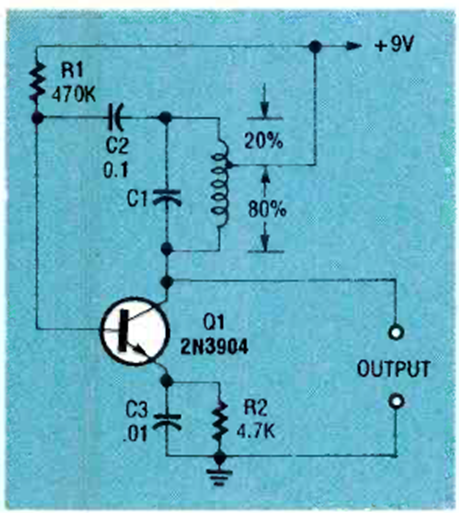

Hartley for 1 MHz (CB25588E)

Details
Written by: Newton C. Braga



This oscillator was found in the July 1993 Electronics Now magazine. The coil is wound with 28-wire in a 0.5 cm shape.
