Divider by 5 Counter (CB25363E)

Details
Written by: Newton C. Braga

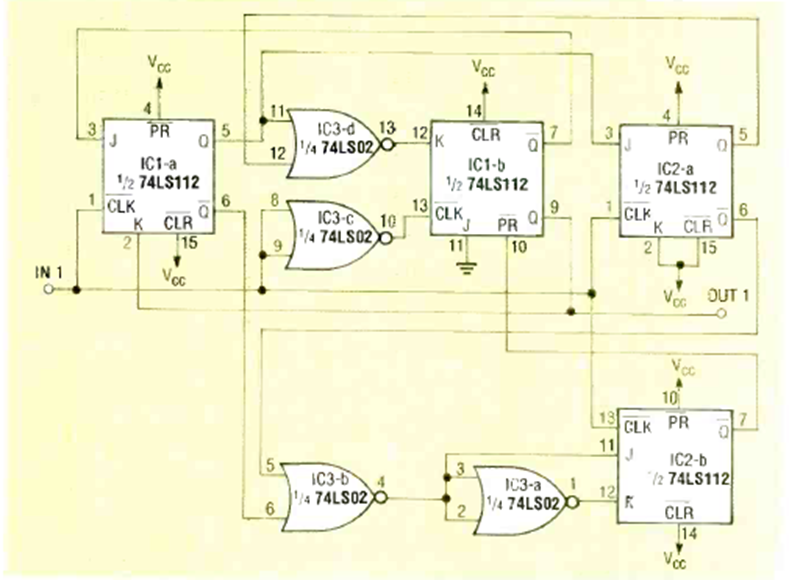

This TTL circuit was found in the December 1990 issue of Radio Electronics magazine. The circuit has a 50% duty cycle. It must be powered by 5 V.
