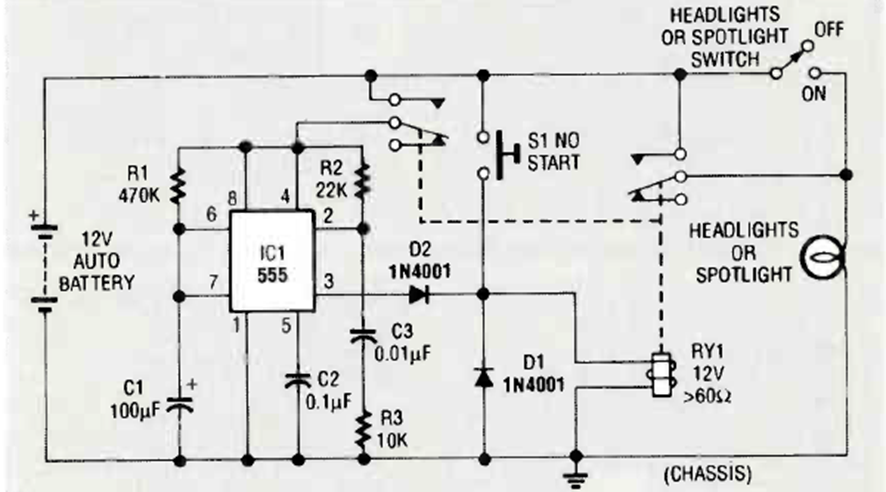

Automatic Flashlight Control 555 (CB25503E)

Details
Written by: Newton C. Braga



This automotive circuit was found in the September 1992 issue of Radio Electronics magazine. The circuit directly drives a relay that must have a coil resistance greater than 65 ohms.
