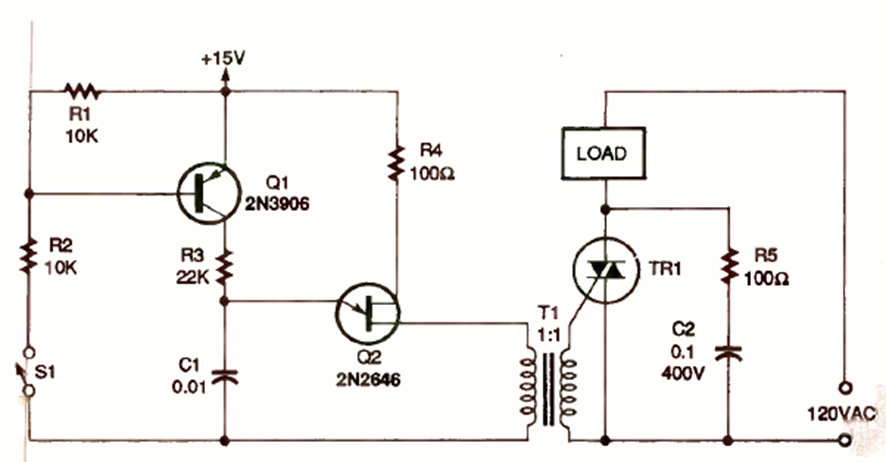

AC switch with trigger transformer for triac (CB25860E)

Details
Written by: Newton C. Braga



We found this transformer-isolated control circuit in a June 1995 Electronics Now. The triac must be equipped with a heat sink.
