Combined Light and Dark Alarm 741 (CB25480E)

Details
Written by: Newton C. Braga

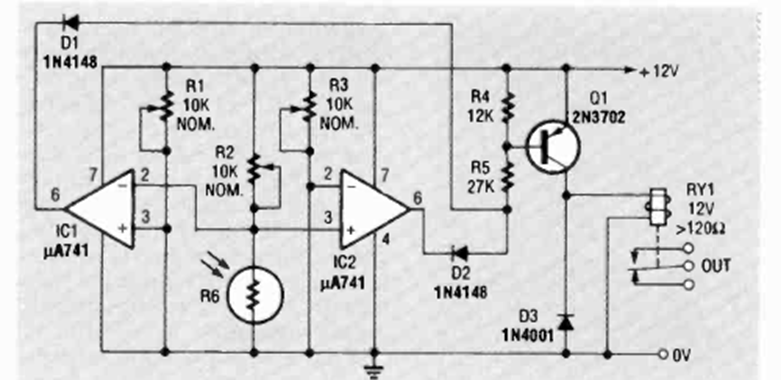

This circuit detects a light window using two operating systems. The circuit is from a July 1992 Radio Electronics.
