Low Frequency Converter 4538 (CB25388E)

Details
Written by: Newton C. Braga

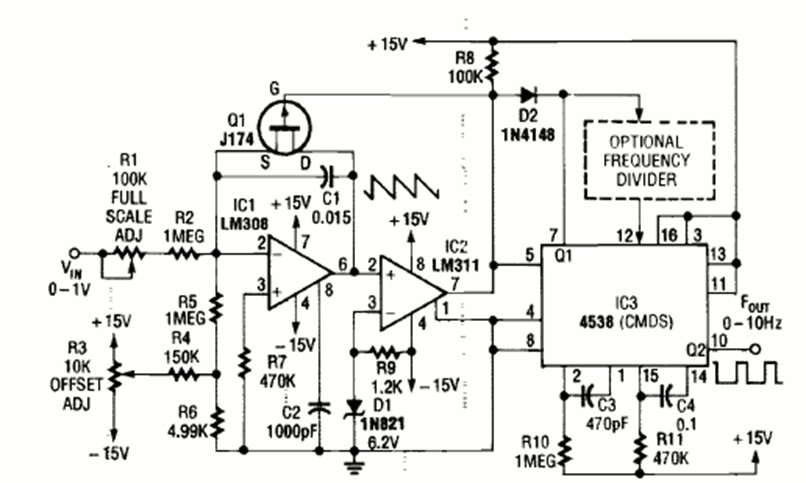

This converter was found in the June 1991 issue of Radio Electronics magazine. The circuit uses common circuits at the time and its operating range can be changed.
