Ionization Chamber Voltage Tripler (CB25668E)

Details
Written by: Newton C. Braga

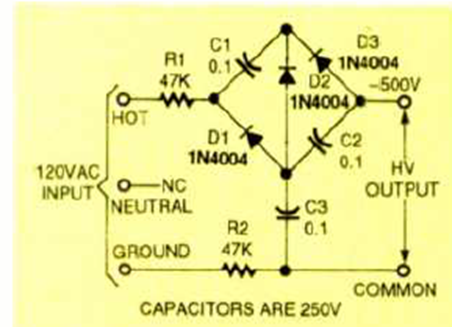

This ionization chamber voltage tripler circuit from the January 1994 Electronics Now magazine uses diodes.
