Thought Recorder ISD1000A (CB25688E)

Details
Written by: Newton C. Braga

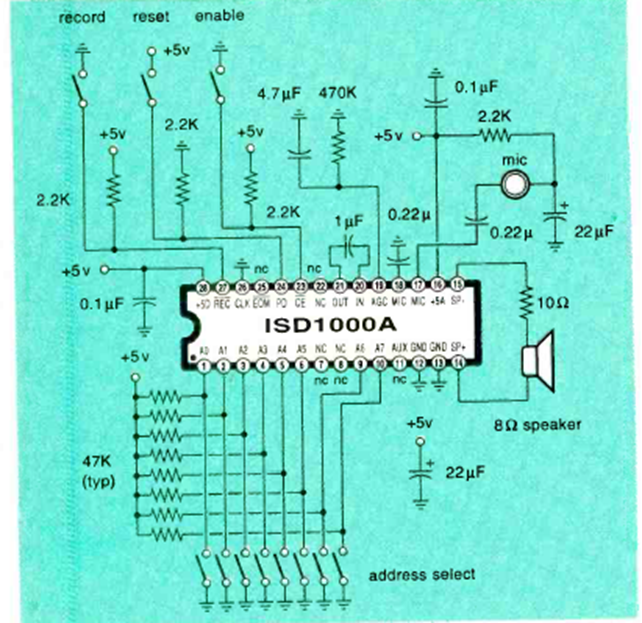

The circuit shown was found in the February 1994 issue of Electronics Now magazine. The circuit records messages for a few seconds and plays them back as keys are selected.




| Clique na imagem para ampliar |
