567 Tone Decoder (CB25787E)

Details
Written by: Newton C. Braga

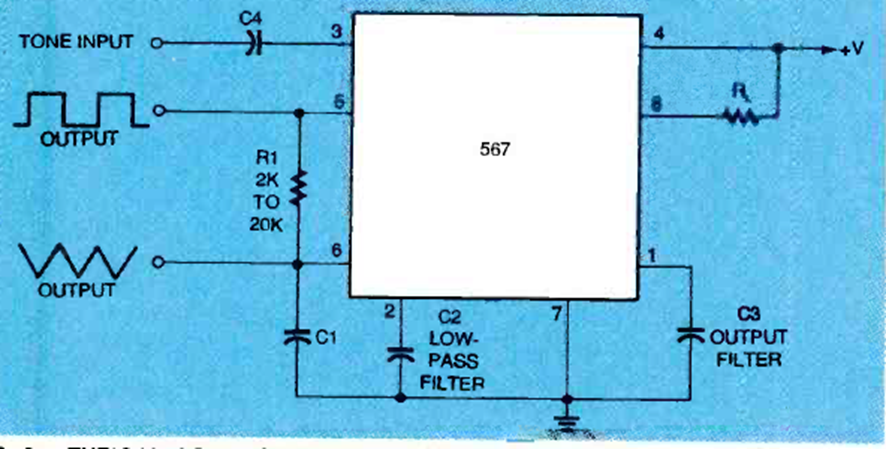

We found this circuit in the December 1994 Electronics Now magazine. The worthless components are frequency dependent.
