Volume limiter (CB25287E)

Details
Written by: Newton C. Braga

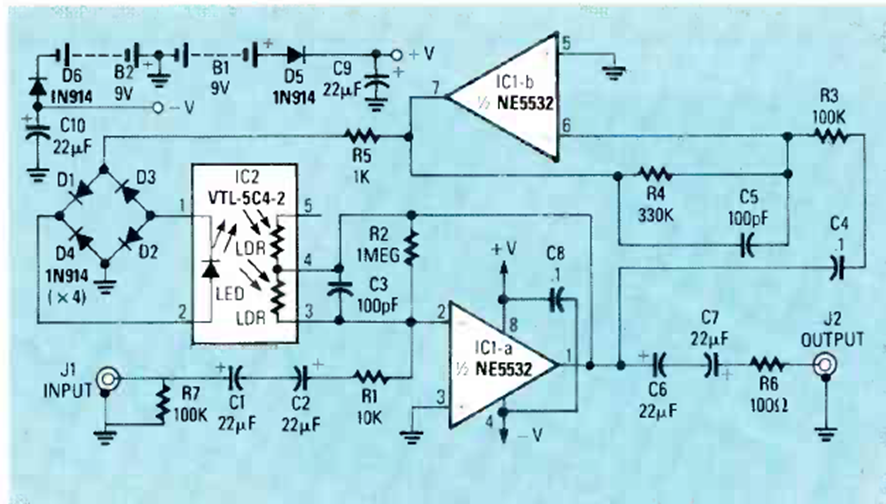

This circuit for audio signals was found in the March 1990 Radio Electronics magazine. The circuit uses a unusual optocoupler that can be replaced with an equivalent one.
