VLF Converter (CB25217E)

Details
Written by: Newton C. Braga

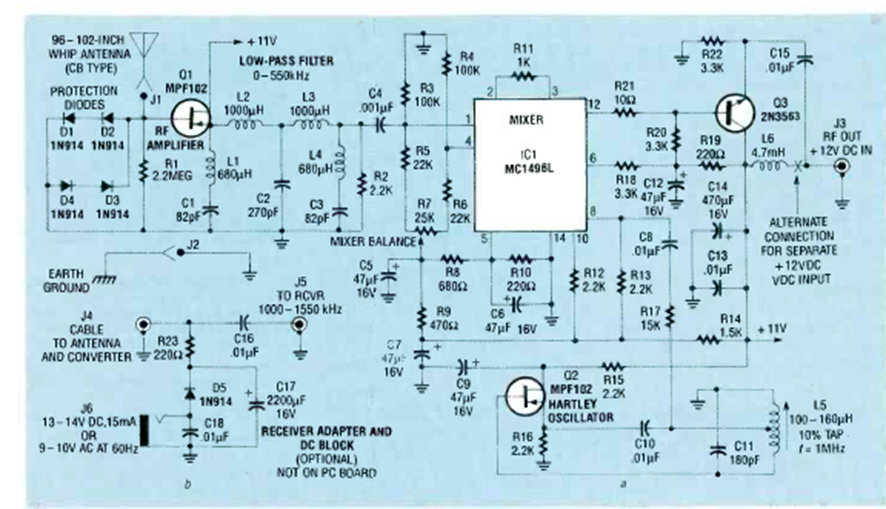

With this circuit from the September 1989 issue of Radio Electronics magazine, it is possible to receive VLF band signals on a common radio, just like the signals emitted by the previous receiver.




| Clique na imagem para ampliar |
