Alarm Clock (CB25239E)

Details
Written by: Newton C. Braga



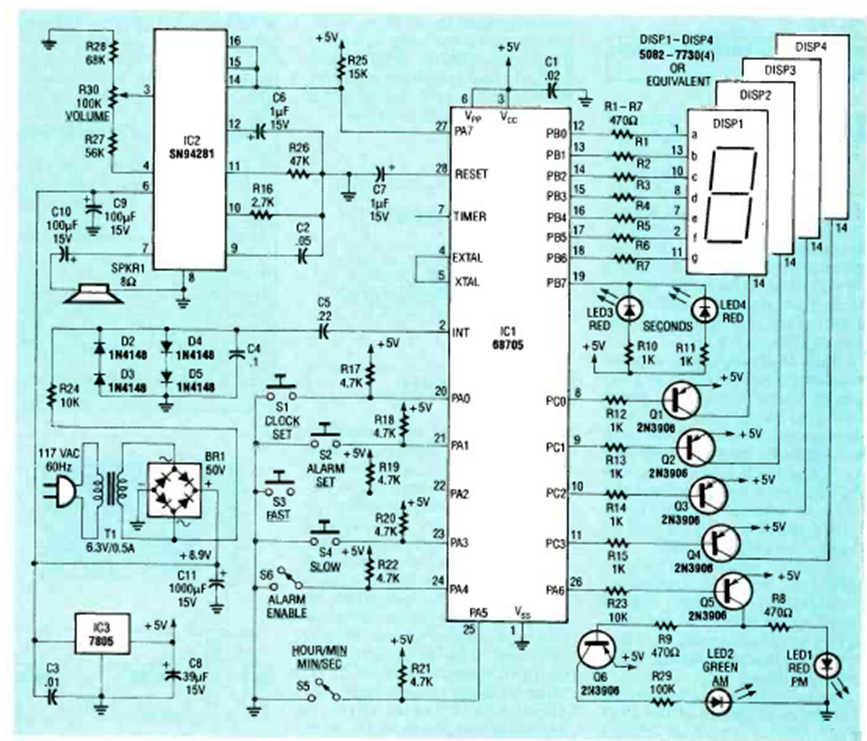

This circuit, which can serve as a reference for restorations, was found in the October 1989 issue of Radio Electronics magazine. The circuit uses a 5-digit display and a dedicated integrated circuit.
