Ion Meter (CB25286E)

Details
Written by: Newton C. Braga

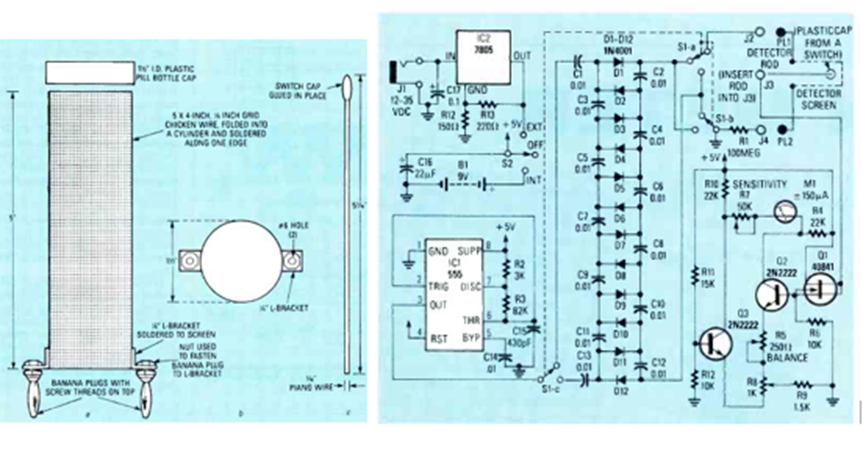

This circuit is part of an article published in the March 1990 issue of Radio Electronics magazine. The sensor consists of a grid-shaped electrode shown in the figure.
