Audio Visual Output Indicator (CB25193E)

Details
Written by: Newton C. Braga

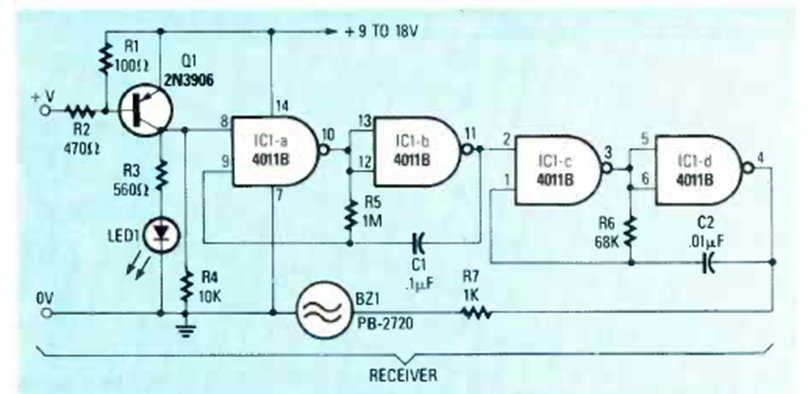

This circuit was obtained from a Radio Electronics issue from January 1989. The indicator is a ceramic transducer, and the frequency of the emitted sound is given by C3.




| Clique na imagem para ampliar |
