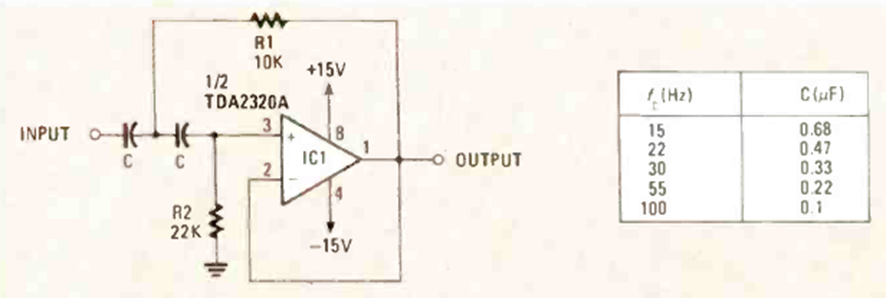

Subsonic Filter (CB25143E)

We found this circuit in the June 1988 Radio Electronics magazine. The power supply must be symmetrical.

| Clique na imagem para ampliar |
