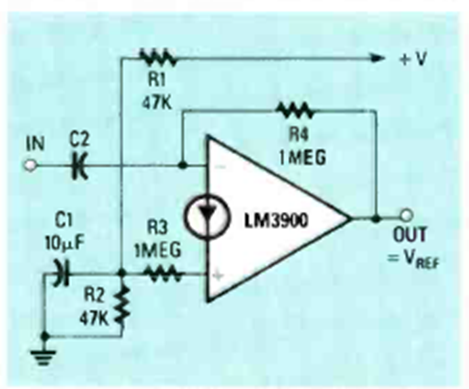

LM3900 Amplifier (CB25165E)

This circuit with Norton operation is from an article in Radio Electronics magazine. The gain is given by the resistors.
