VLF Transmitter (CB25216E)

Details
Written by: Newton C. Braga

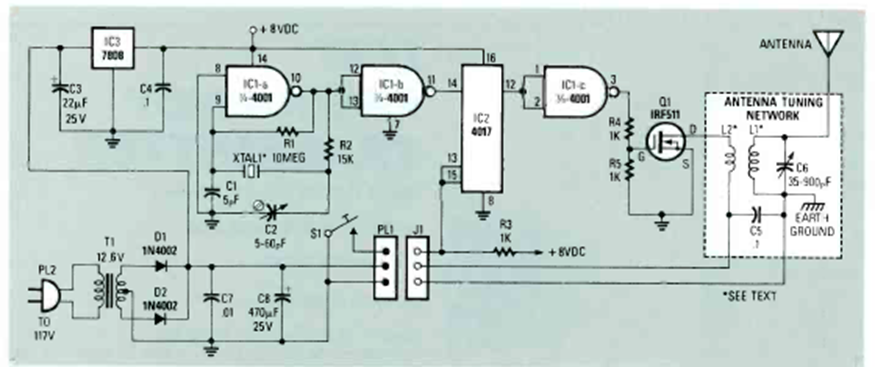

This circuit for the 1750 m band was published in the September 1989 Radio Electronics magazine. The range depends on the antenna system and receiver used.
