Micro FM Stereo Integrated (CB25238E)

Details
Written by: Newton C. Braga

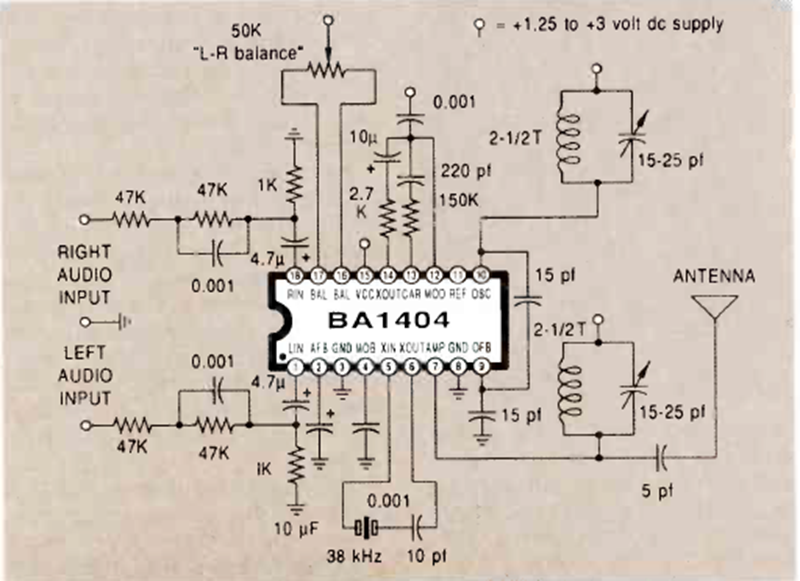

Using a BA1404 integrated circuit this small FM stereo transmitter was found in a Radio Electronics magazine from October 1989. The coils are indicated.
