Two-wire comparator (CB25192E)

Details
Written by: Newton C. Braga

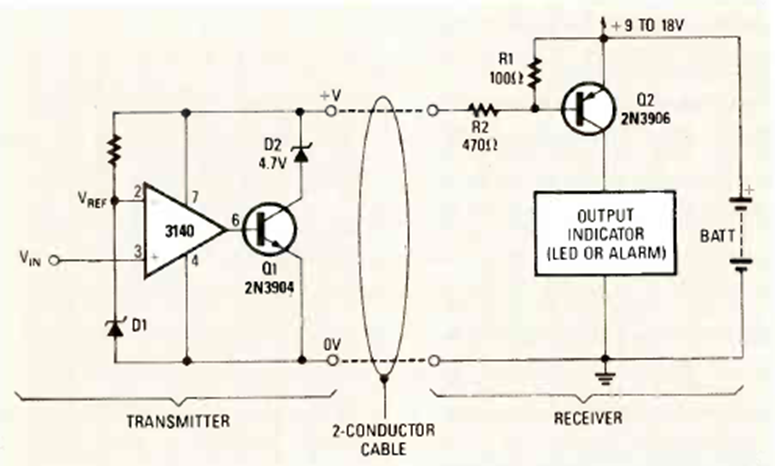

With this circuit it is possible to connect a comparator to a power stage via two wires. The circuit can be used as a voltage monitor, for example.
