Digital Oil Pressure Gauge (CB25336E)

Details
Written by: Newton C. Braga

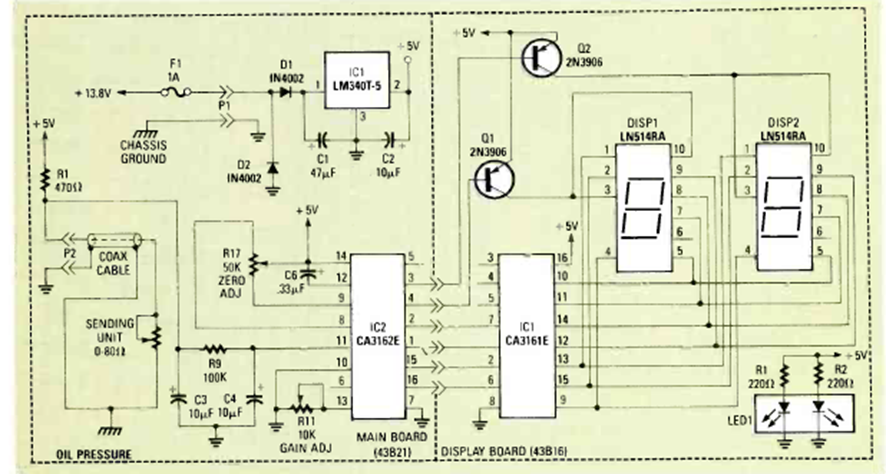

This circuit was found in the July 1990 Radio Electronics magazine. It is based on the 3-digit indicator ICs CA3161 and CA3162.
